SOURCIX Drawing Verifier checks 2D drawings and 3D CAD files for manufacturability risks, missing specifications, and tolerance conflicts before you send an RFQ. Catch the errors that cause quote delays, redesign loops, and production failures.

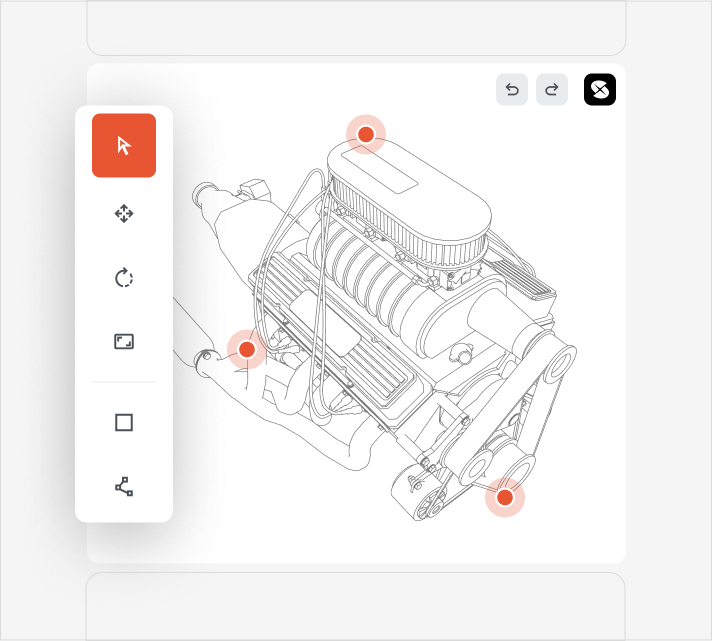

Upload 2D technical drawings or 3D CAD files. The system reads geometry, dimensions, tolerances, notes, and manufacturing callouts directly from the file.
The tool flags missing specifications, unclear annotations, geometry conflicts, and tolerance issues that would delay quoting or cause production problems.
Receive a clear validation summary. Send RFQs with complete, consistent technical data and no unresolved questions.
Unverified drawings create quoting delays, supplier confusion, and production risk.
Unspecified materials, finishes, or tolerances lead to inaccurate quotes and repeated clarification cycles.
Geometry that cannot be machined or formed efficiently results in redesign and schedule impact.
Conflicting or unrealistic tolerances increase scrap rates and quality failures.
Non-standard naming, unclear notes, and incomplete annotations slow supplier evaluation.
Drawing Verifier applies rule-based and AI analysis across four critical dimensions of drawing quality.
Checks geometry against common manufacturing constraints such as machining limits, bending rules, and molding feasibility.
Verifies that materials, finishes, surface treatments, tolerances, and critical dimensions are clearly defined.
Identifies tolerance ranges that are unrealistic, conflicting, or misaligned with the manufacturing process.
Generates a structured validation report that engineering and procurement teams can review before the RFQ is released.
When drawings are correct before sourcing begins, projects move faster.
Send drawings that suppliers can quote without repeated clarification cycles.
Complete technical data gives manufacturers the information required to price parts correctly.
Catching manufacturability issues early prevents redesign loops that delay production.
The Drawing Verifier feeds validated engineering data into BOM structuring, supplier matching, and quotation workflows within the SOURCIX platform. Upload your next drawing and receive a structured manufacturability review in minutes.
